The Multi Source Receiver
In the R 2500 R, the design and performance of our R series come together with the universal usability of a 'One Box System.' Its sources enable an almost limitless selection of playback options, with its integrated DSD and PCM converters transforming digital signals into analog signals of unique quality, which are then output to external speakers by the built-in amplifiers in T+A's typical sound quality. The new R 2500 R is among the first T+A devices to have access to the third generation of our streaming architecture: It not only allows access to streaming services and USB sources but, for the first time, a T+A device can be controlled directly from the mobile streaming apps Spotify and Tidal via Connect Services.

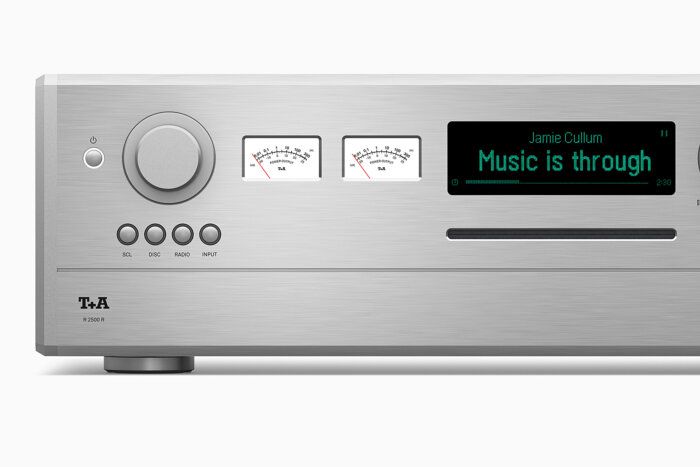

Measuring 16,5 × 46 × 40,5 cm, the R 2500 R follows our design philosophy of timeless reduction: Few but thoughtfully placed buttons interrupt the elegant front, whose characteristic phases create an almost seamless transition into the side panels, while the entire body of the R 2500 R radiates in the light gloss of hand-brushed aluminum.
Specifications
Frequency response +0 /-3dB
0,5 Hz - 300 kHz
Signal / noise ratio
105 / 109 dB
THD | Intermodulation | Channel separation
< 0,001 % | < 0,001 % | > 90 dB
Nominal input sensitivity High level input unbalanced (RCA)
High level input balanced (XLR)
Analogue pre-amplifier output (RCA)
250 mVeff ... 4 Veff / 20 kOhm (IN 2 and IN 3)
500 mVeff … 8 Veff / 5 kOhm
nom 1 Veff, max 9,5 Veff / 47 Ohm
Output power (RMS) per channel
250 watts @ 4 ohms
140 watts @ 8 ohms
Frequency response +0 /-3dB
0,5 Hz - 150 kHz
Headphone output
4,4 mm Pentaconn (6 Ohms)
Digital inputs
3 x S/P-DIF: 1 x Standard Coax, 2 x optical TOS-Link (32...192 kHz / 16-24 Bit), DSD64 (DOP)
1 x USB DAC: Device-Mode up to 768 kSps (PCM), DOP256 and DSD 512*, supports
asynchronous data transfer. *DSD 512 only with Windows PC with appropriate driver or a Linux PC with kernel version 4.4 or higher.
2 x HDMI IN, 1 x HDMI OUT with ARC
PCM
Double-Differential-Quadruple-Converter with four 32-Bit Sigma-Delta D/AConverters
per channel. 705,6 / 768 kSps conversion rate
DSD: T+A-True-1Bit DSD D/A-Converter, up to DSD 512 (22,4 / 24,5 MHz), native bitstream
DSD
T+A-True-1Bit DSD D/A-Converter, up to DSD 512 (22,4 / 24,5 MHz), native bitstream
Upsampling
T+A-Signalprocessor – synchronous upsampling with 4 selectable oversampling
algorithms. FIR short, FIR long, Bezier/IIR, Bezier
Analogue output filter
Phase-linear Bessel filter 3rd order, switchable with 60 or 120 kHz cut off frequency
Frequency response
PCM 44.1 kSps 2 Hz - 20 kHz
PCM 48 kSps 2 Hz - 22 kHz DSD 64: 2 Hz - 44 kHz
PCM 96 kSps 2 Hz - 40 kHz DSD 128: 2 Hz - 60 kHz
PCM 192 kSps 2 Hz - 80 kHz DSD 256: 2 Hz - 80 kHz
PCM 384 kSps 2 Hz - 100 kHz DSD 512: 2 Hz - 100 kHz
PCM 768 kSps 2 Hz - 120 kHz
Formats
CD/DA, CD-R, CD-RW, CD-text
Frequency response and dynamic range
2 Hz – 20 kHz / 100 dB
Formats
MP3, AAC, OGG-Vorbis, FLAC, WAV, AIFF, ALAC, DFF, DSF
PCM 32 … 384 kHz, 16/24 Bit; MP3 bis 320 kBit
DSD64; DSD128; DSD256
Supported media servers
UPnP 1.1, UPnP AV and DLNA kompatible Server, Microsoft Windows Media Connect Server (WMDRM10, DLNA compatible servers
Supported streaming services
airable radio and podcasts, Tidal, Qobuz, Deezer, Amazon Music HD, highresaudio,
Tidal connect, Spotify connect, Apple Airplay2, Plays with Audirvana, Roon
Features
Auto Network Config., Internet Radio Station database (automatic updates)
Interfaces LAN
Fast Ethernet 10/100 Base-T,
WLAN
IEEE 802.11a/b/g/n/ac/ax 2x2 MIMO
2.412 – 2.472 GHz (2.4GHz ISM Band, 13 Channels)
Channel 1 – Channel 13
North America FCC, Japan MIC, Europe ETSI
20MHz bandwidth
5.180-5.825 GHz (5GHz UNII-1/2/3 Band, 24 Channels)
North America (IC and FCC):
5.180-5.600 GHz, 5.650-5.825 GHz
Europe, Japan (ETSI and MIC):
5.180-5.700 GHz
max gain in 2.4GHz band: 3.2dBi
max gain in 5 GHz band: 4.25dBi
up to 17dBm (at antenna terminal).
Frequency range
FM Radio 87,5 – 108 MHz (Europa / US); 76 – 90 MHz (Japanese version)
Sensitivity
Mono (26dB S/N) 0,9 µV, Stereo (46 dB S/N) 40 µV
Stereo channel separation
50dB
RDS Functions
Stationname, Radio text
Reception standard
DAB, DAB+
Freqency band
168 – 240 MHz (Band III)
Sensitivity (BER = 10 – 4)
2,5 µV
Supported audio formats
A2DP (Audio), AVRCP 1.4 (Control) / aptX® HD, SBC, AAC
Freqency band
2,4 GHz: 2042Mhz ... 2480Mhz
Max. transmission power <10 dBm (EIRP)
Mains voltage
220-240 V, 50-60 Hz / 100-130 V, 50-60 Hz (see back panel of the R 2500 R)
Normal operation (max.)
800 Watts
Dimensions | Weight | Accessories | Finishes
Dimensions (H x W x D)
16,5 cm x 46 cm x 40,5 cm / 6,5 x 18,1 x 16 inch
Accessories
Power cord, remote control SRC 2, 2x WLAN antenna, FM antenna
Finishes
Silver anodised aluminium (43), black anodised aluminium (42), brushed
Technical modifications reserved
